Dominion Voting Systems
Dominion ImageCast Evolution
Make / Model: Dominion ImageCast Evolution
Equipment Type: Optical Scan

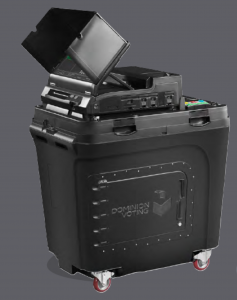

The ImageCast Evolution (ICE) is a hybrid voting device that combines optical scanning, ballot printing, and vote casting functions in one integrated machine. With this device, most voters will hand-mark their paper ballots (typically distributed at the polling place check-in station), and hand-feed their ballot into the ICE’s ballot feed slot. The ICE scans paper ballots, interprets voter marks, and communicates any issues that require the voter’s attention back to the voter through an LCD display. For example, if the voter has marked too many choices in a race, the display lets the voter know this and offers the option to return the ballot for correction, or to cast the ballot. (More specifically, there are two buttons, a square red button labeled “Return” and an oval green button labeled “Cast.”)
For voters with disabilities, the ICE device also offers additional accessible voting features. The ICE also features an Audio Tactile Interface (ATI) which permits voters with visual, dexterity, or cognitive impairments to mark choices on an electronic display, print the marked ballot, and cast it through the device’s motorized paper path. The ATI controller offers an audio ballot experience and allows voters to navigate through choices on the LCD display. It can also accommodate sip-n-puff or paddle switches for voters with limited manual dexterity.
In older ICE devices, while a voter with disability is using the accessible features, other voters cannot use the machine to scan their ballots, which can cause a bottleneck, because voters that hand-marked their ballot and simply want to insert them to scan must wait to cast their ballots; in newer ICE devices, the accessible features can be deployed on a separate station so there is no bottleneck.
Because the ICE device both prints and scans through a single combined paper path, it does have the capability (at least theoretically, in principle) to print additional marks on ballots when they are deposited.
Whether voters hand-mark the ballot or use accessible features, after voters have had a chance to review any potential mismarks, the ICE pulls the ballot through a motorized feed and deposits the ballots into the integrated ballot box. The ICE device has tabulating capabilities, and when the polls close, the ImageCast can print out the race results and other information on a paper tape (if configured to do so).
Once the voter credentials are verified, a poll worker will give the voter a paper ballot. In some jurisdictions, a secrecy folder may also be provided. The voter will take the ballot to a designated marking station, where a marking pen will be provided.
To vote, the voter fills in the oval next to their choice, using only the pen provided. When they are finished voting, the voter places their ballot in the secrecy folder, if provided.
The voter is ready to approach the tabulator and either use the secrecy folder or directly feed the ballot into the tabulator. The ballot will be read by the tabulator in any orientation. The voter should wait until the ballot is successfully cast, in case the tabulator detects any non-typical voting scenarios.
When a valid ballot is scanned, the tabulator screen will display the message ‘Scanning Ballot in Progress’. After the ballot is cast and dropped into the ballot box, the Ballot Counter at the bottom of the tabulator screen will have increased by one, and the screen will return to ‘System Ready’.
However, if the tabulator detects certain non-typical voting scenarios, a warning message will be displayed on the screen. These scenarios may include: a Blank ballot, which the voter can choose to CAST or RETURN; or an Overvoted ballot, which the voter can choose to CAST as is, or RETURN for correction.
If the tabulator detects unclear marks, the ballot will be immediately returned and the screen will display an Ambiguous Mark message. The ballot must be corrected before it can be cast.
When the polls close at the end of Election Day, the results from the secure, encrypted memory cards of each ImageCast Evolution tabulator are uploaded to the central system in order to rapidly tally and report the results to the public and the media.
The ImageCast Evolution features several accessible voting interfaces that allow voters with various disabilities to effectively vote, review and cast a paper ballot in a private and independent manner. The ImageCast Evolution offers the following user interfaces:

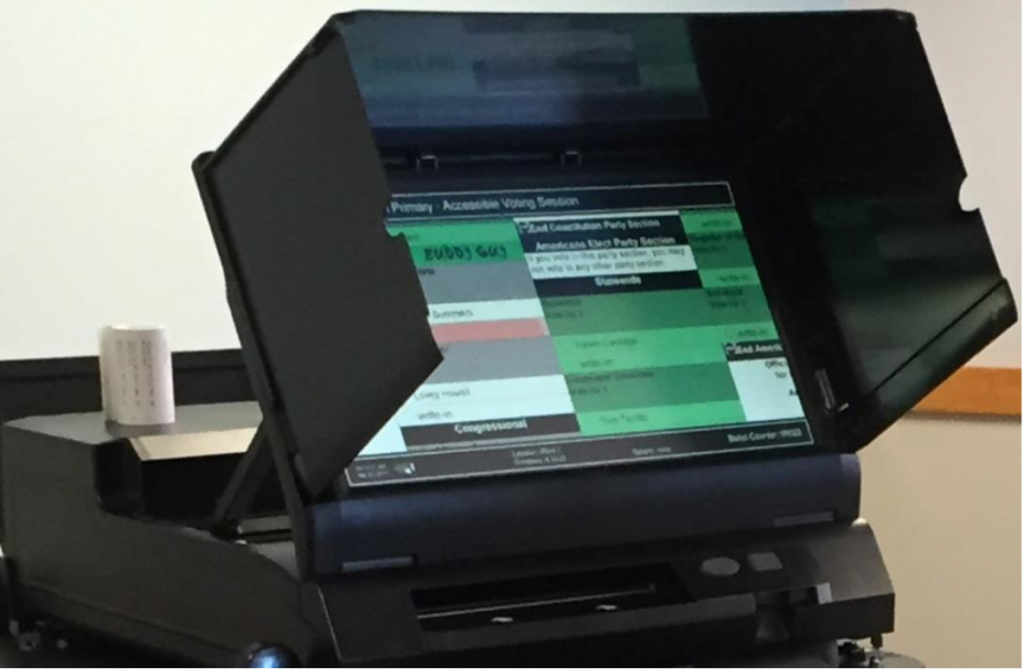

- 19” full-color LCD screen for visual ballot review and ballot casting
- Accessible ballot marking interface (both audio and visual)
- Assertive input devices for accessible ballot navigation and voting, including an ATI (Audio-Tactile Interface), sip & puff, and paddles
The accessible voting session uses a hand-held controller called an ATI (Audio Tactile Interface) that connects to the ImageCast Evolution. A set of headphones connects directly to the ATI controller. Following the audio voting process using the ATI controller, the integrated inkjet printer produces a marked paper ballot which serves as the official ballot record. Voters are able to review, verify and correct their selections prior to casting their ballot by audio and/or visual means.
The display can be adjusted using the zoom and contrast buttons. There are three different zoom levels in order to provide an enlarged ballot for voters with visual impairments. Every voter conﬁgurable option is automatically reset to its default value with the initiation of each new voting session. The contrast button allows the voter to display the screen image in high contrast (high contrast is a ﬁgure-to-ground ambient contrast ratio for text and informational graphics of at least 6:1).
The ATI is the handheld device that is used by a voter during an Accessible Voting Session to navigate through and make selections to their ballot. The ATI:
- Has raised keys that are identifiable tactilely (i.e. raised buttons of different shapes and colors, large or Braille numbers and letters)
- Can be operated with one hand
- Includes a 3.5 mm headphone jack
- Includes a T-Coil coupling
- Has a T4 rating for interference
- Uses light pressure switches
- Can be equipped with a pneumatic switch, also known as a Sip and Puff device, or a set of paddles.
