The Hart Intercivic Vanguard Vault is a hand-fed digital scanner and tabulator used to capture and process voter selections from paper ballots. It is a hardware component of the Vanguard 1.0 suite, which received federal certification under the VVSG 2.0 standards on July 7, 2025. The device is designed to interpret both hand-marked ballots and machine-printed summary records using an integrated Optical Character Recognition (OCR) engine rather than traditional barcode-based tabulation.

Technical Logic: OCR vs. OMR

The primary technical distinction of the Vanguard Vault is its reliance on Optical Character Recognition (OCR) for tabulation.

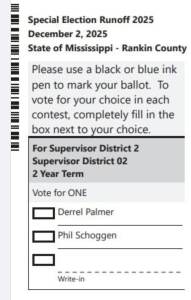

• Content-Based Reading: Traditional precinct scanners (OMR) measure ink density at specific X/Y coordinates (the “bubbles”). The Vault’s OCR engine instead analyzes the actual shapes of the marks and the printed text of the candidates’ names.

• Plain-Text Tabulation: For ballots produced by the Vanguard Flex or Adapt, the Vault reads the literal text printed on the record. This ensures that the tabulator and the voter are using the same human-readable information as the “source of truth,” eliminating the need for machine-only barcodes or QR codes.

Hardware and Security Features

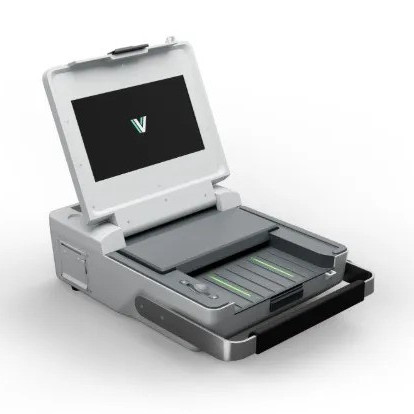

The Vanguard Vault is a portable unit weighing 17 pounds, designed for use on a tabletop or an integrated ballot box.

• Vanguard ID: Each unit features an “always-on” e-ink smart label on the exterior. This label displays the device’s status, battery level, and current election ID, even when the unit is powered off, to assist with chain-of-custody tracking.

• Dual-Battery Redundancy: The system utilizes two hot-swappable smart batteries to provide continuous operation during power transitions or outages.

• Zero Trust Security: In accordance with VVSG 2.0, the Vault requires FIPS 140-validated USB tokens for all administrative actions (such as opening the polls). The device utilizes Secure Boot to verify firmware integrity and encrypts all CVRs at the moment of creation.

• Results Transmission: At the close of polls, the Vault prints a summary results tape via an internal thermal printer. Results data is then transferred to the central office via a secure, encrypted vDrive (removable USB media).

Performance and Standards

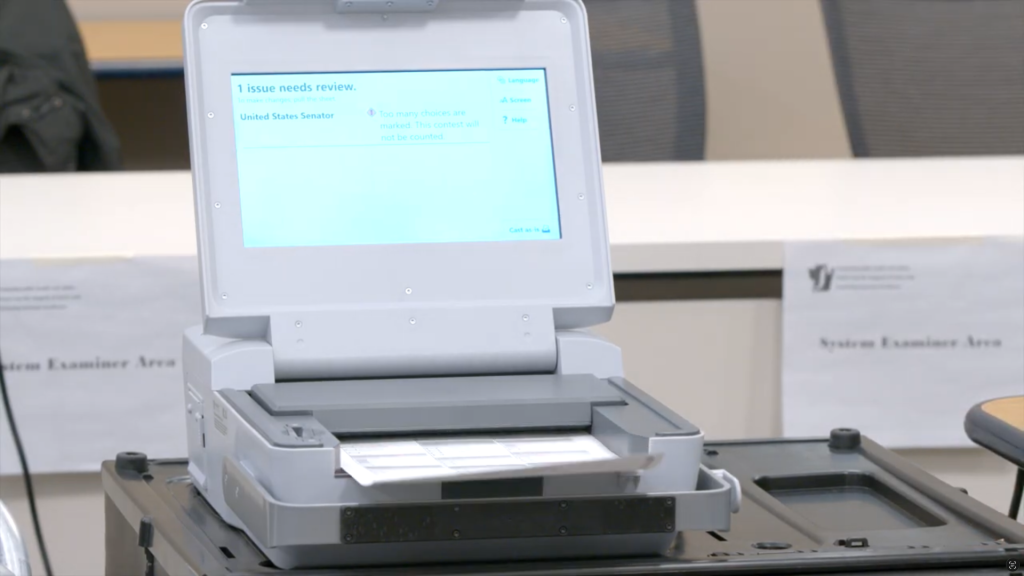

The Vanguard Vault was the first precinct tabulator to be tested and certified against the VVSG 2.0 security, accessibility, and usability requirements. During federal testing, the system was evaluated for its ability to accurately interpret varied voter marks and for its “Effectiveness” in guiding voters through the casting process via on-screen animations and physical “landing lights” at the insertion slot.
